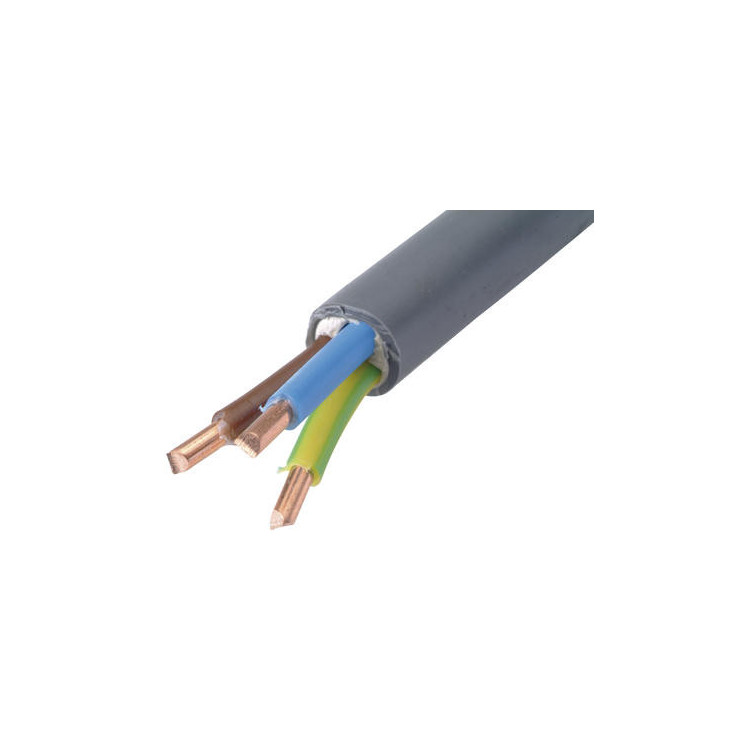

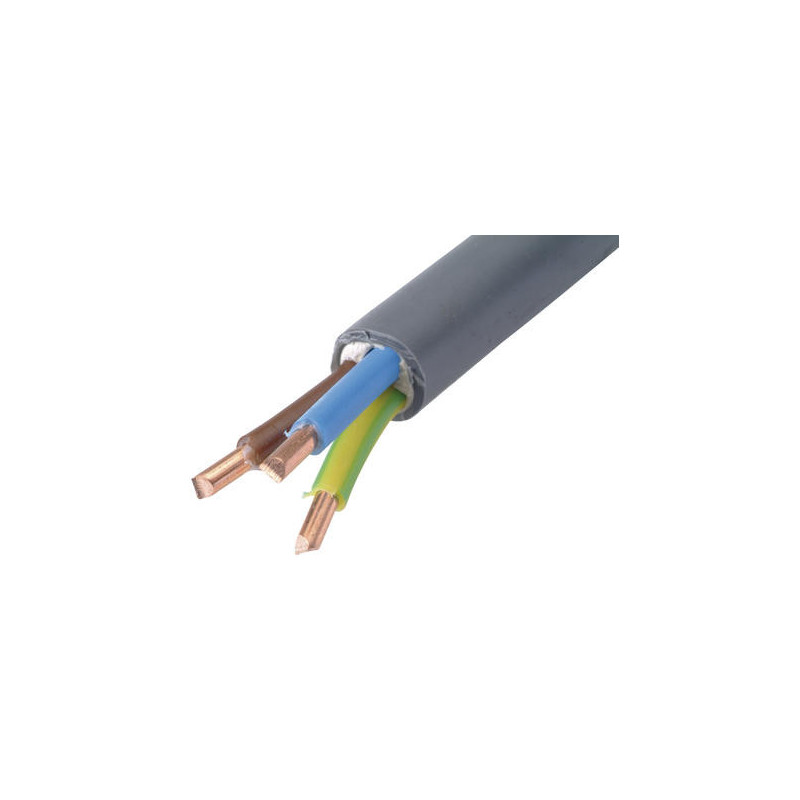

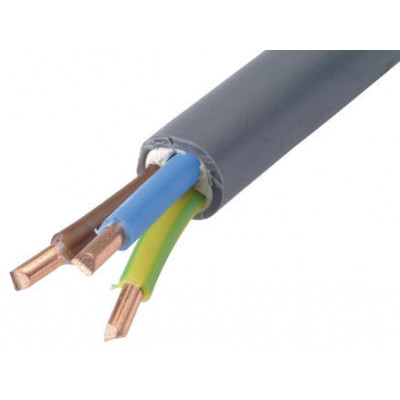

Electrical wiring 3G 2,5 mm XGB

EL-XGB-3G2,5

Rigid power supply cable designed for domestic or industrial use and composed of solid copper conductors and a protective PV sheath.

395.00€

(3.95€ /m)

Tax excluded For the deadline contact us
Available

Add to wishlist



Download PDF

Application

  • In buildings, in the open air, in gutters, in pipes, on cable trays

Properties

  • Max temperature permissible conductor: 90 ° C (250 ° C with a short-circuit of max. 5 sec.)
  • Min temperature installation: 0 ° C
  • Minimum bending radius: Single core: 15 x outer diameter, Multicore: 12 x outer diameter

Construction

  • Copper conductors
  • PRC insulation (conductor colors according to HD 308)
  • Tape or extruded assembly cover
  • PVC outer sheath, gray (fire retardant)
EL-XGB-3G2,5

Data sheet

Sub-category
Electric cables
Amperage
20 A
Tubing
20 mm
